What We Do
Discover our Feature products designed to fuel your journey.
Product section provides detailed specifications, features, and technical insights of medical imaging systems, helping professionals understand capabilities, applications, performance metrics, and advantages for informed purchasing and clinical decisions.

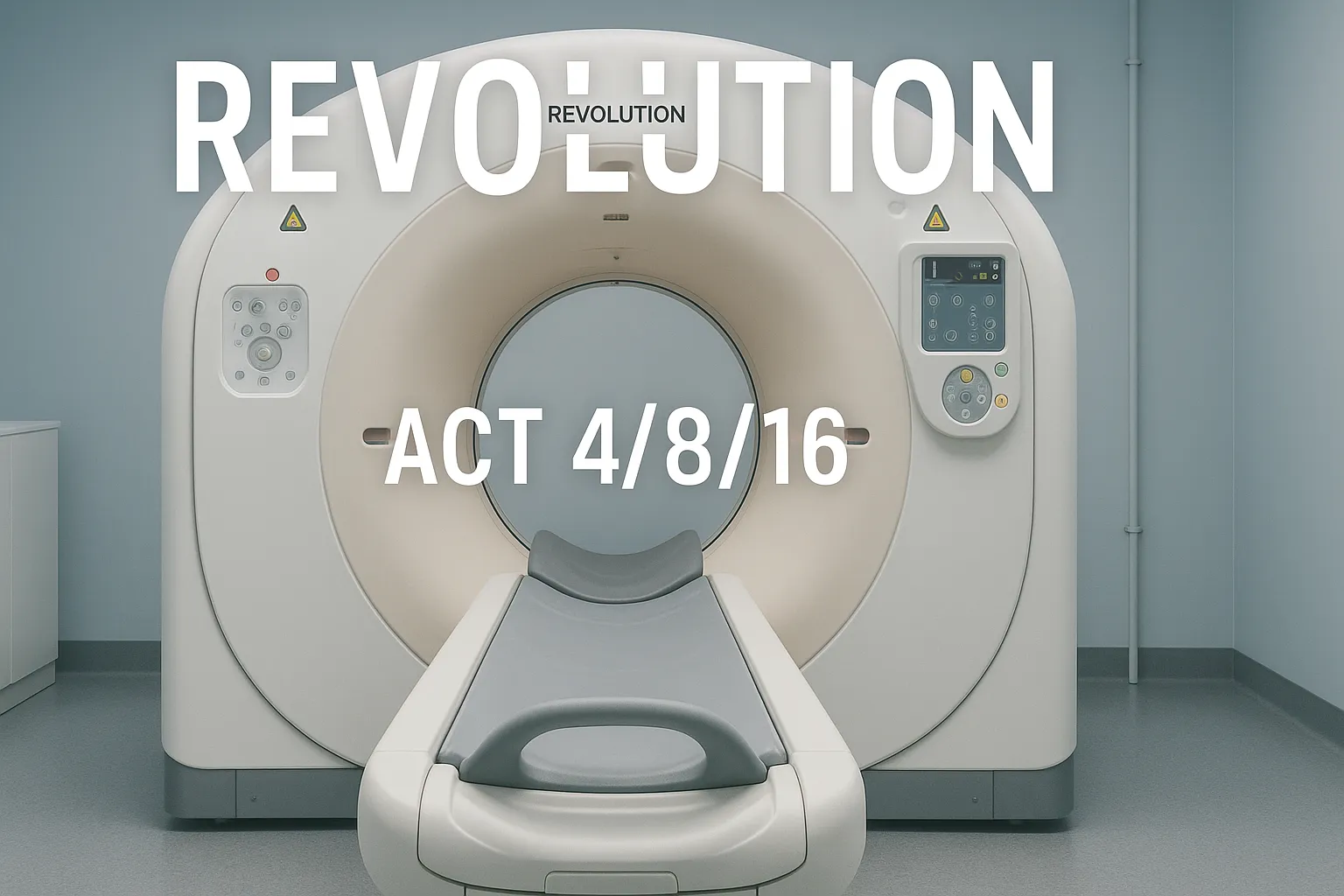

Revolution Act
- 2.0 MHU Anode head capacity
- 500 KHU/min Max anode dissipation rate
- On-Board 24 KW Generator
- 120 cm metal-free scan able range
- Supports 180 kg patients accurately
- Fixed table
- 65 cm aperture

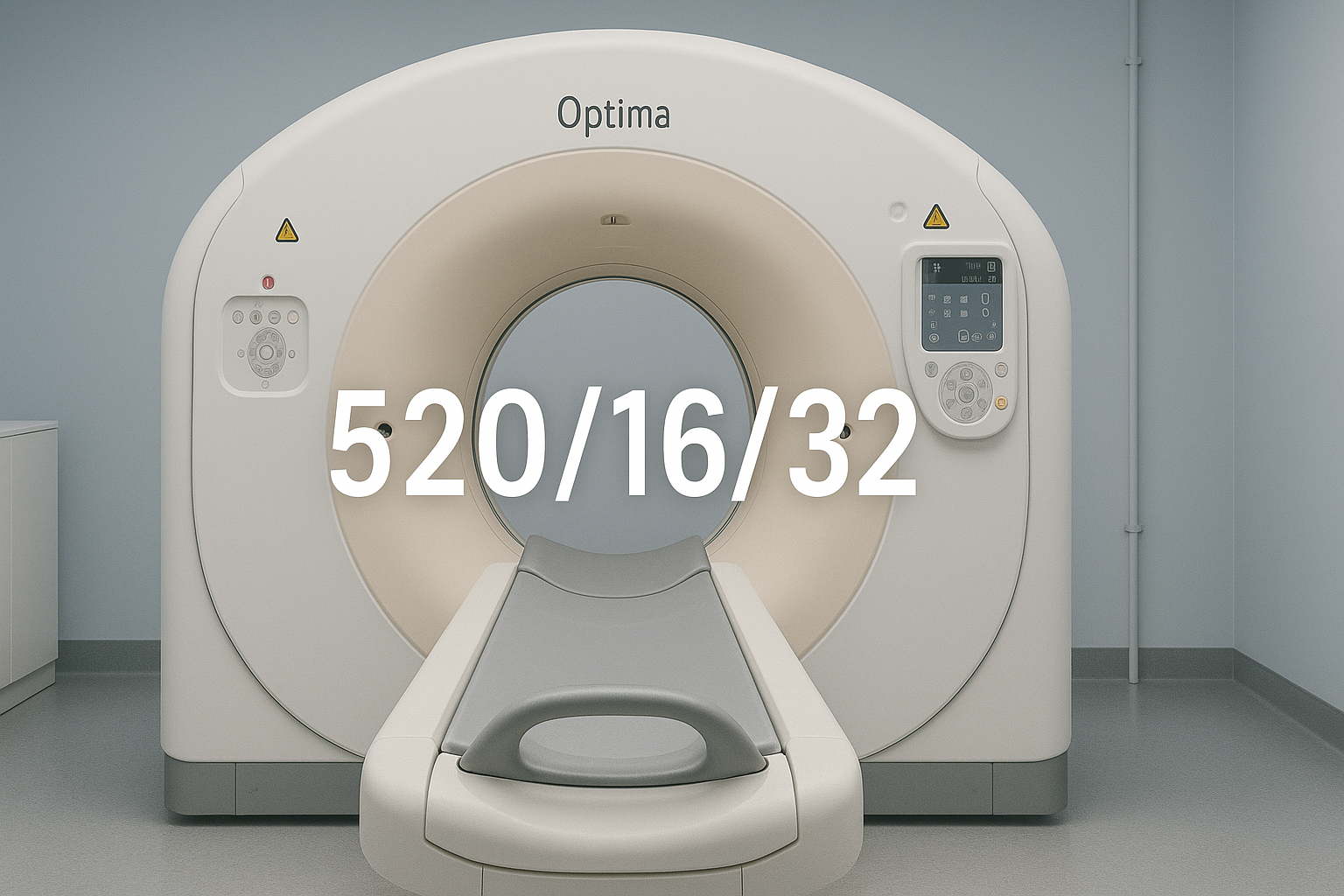

Optima 520 16/32
- 3.5 MHU anode heat capacity
- 820 KHU/min max anode dissipation rate
- On-board 24 kW generator
- 134 cm metal-free scan able range
- Supports 205 kg patients accurately
- 70 cm aperture
- +/- 30 degree tilt

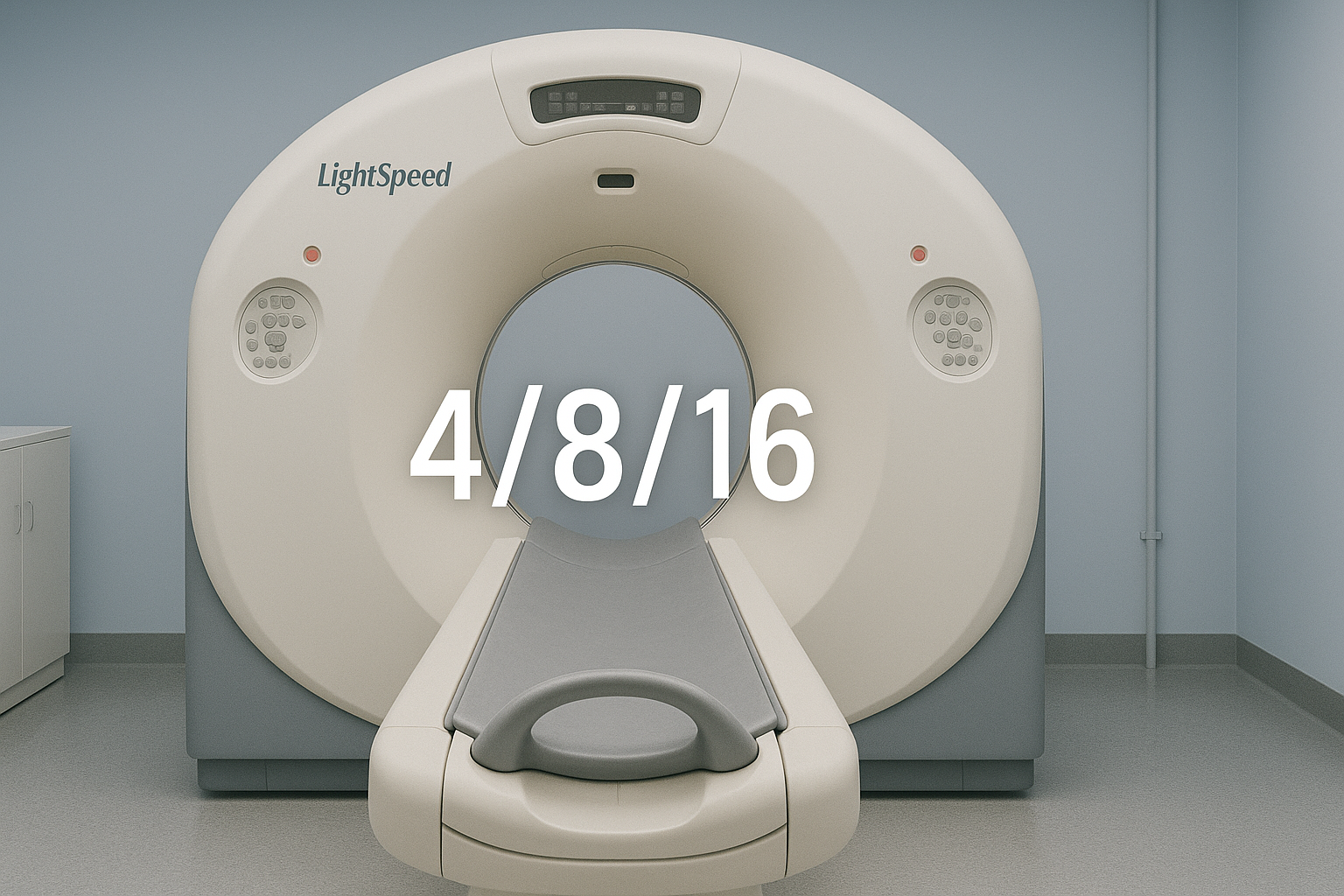

Lightspeed
- 440 mA capability
- 53 kW generator
- High Frequency High Voltage Generator
- 6.3 MHU x-ray tube
- In-room start
- ± 30° gantry tilt
- 205 kg (450 lb) maximum allowed with normal operation

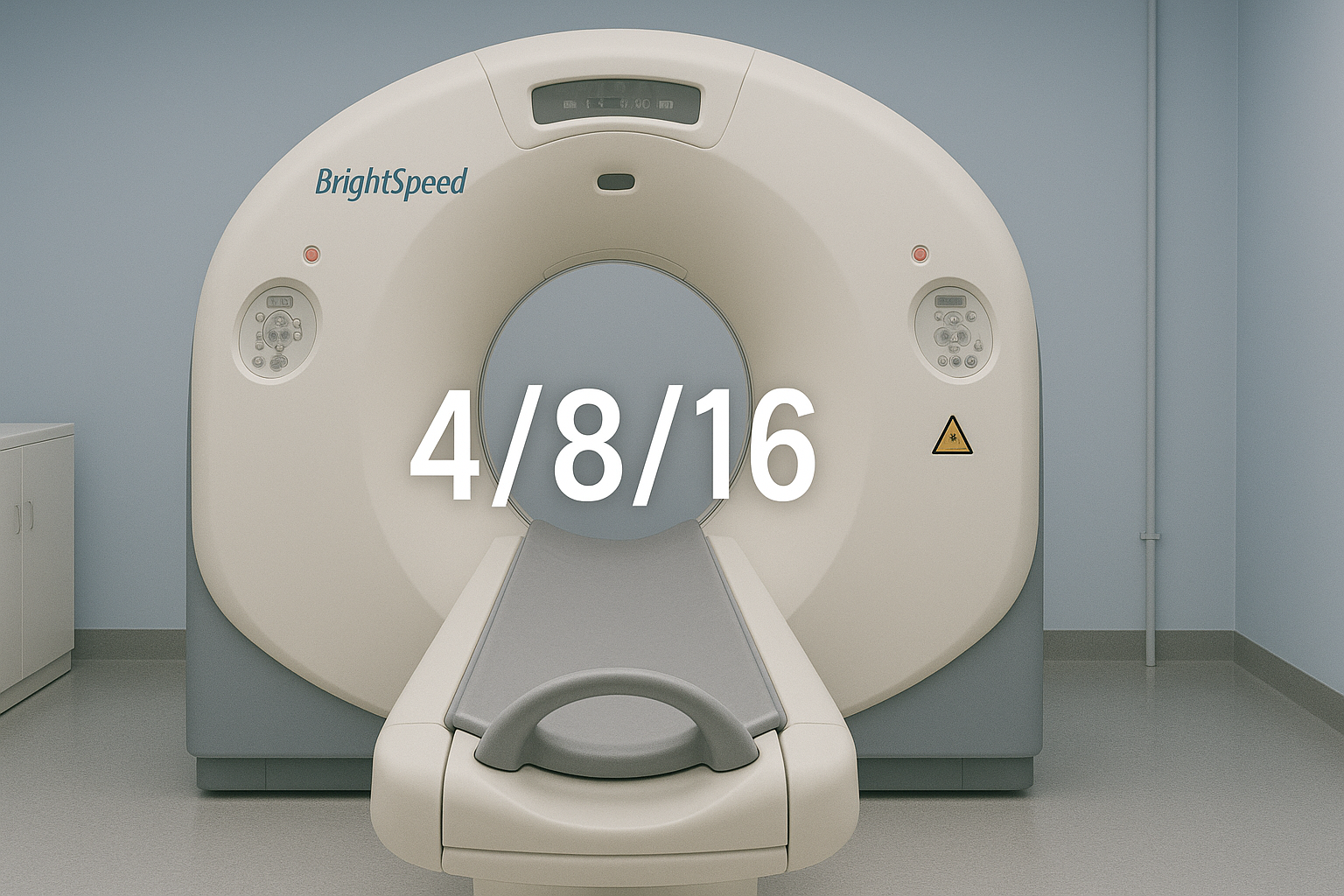

Brightspeed
- 3.5 MHU anode heat capacity
- 820 KHU/min max anode dissipation rate
- On-Board 24 kW Generator
- 134 cm metal-free scan able range
- Supports 205 kg (450 lb) patients accurately
- 70 cm aperture
- ± 30° gantry tilt

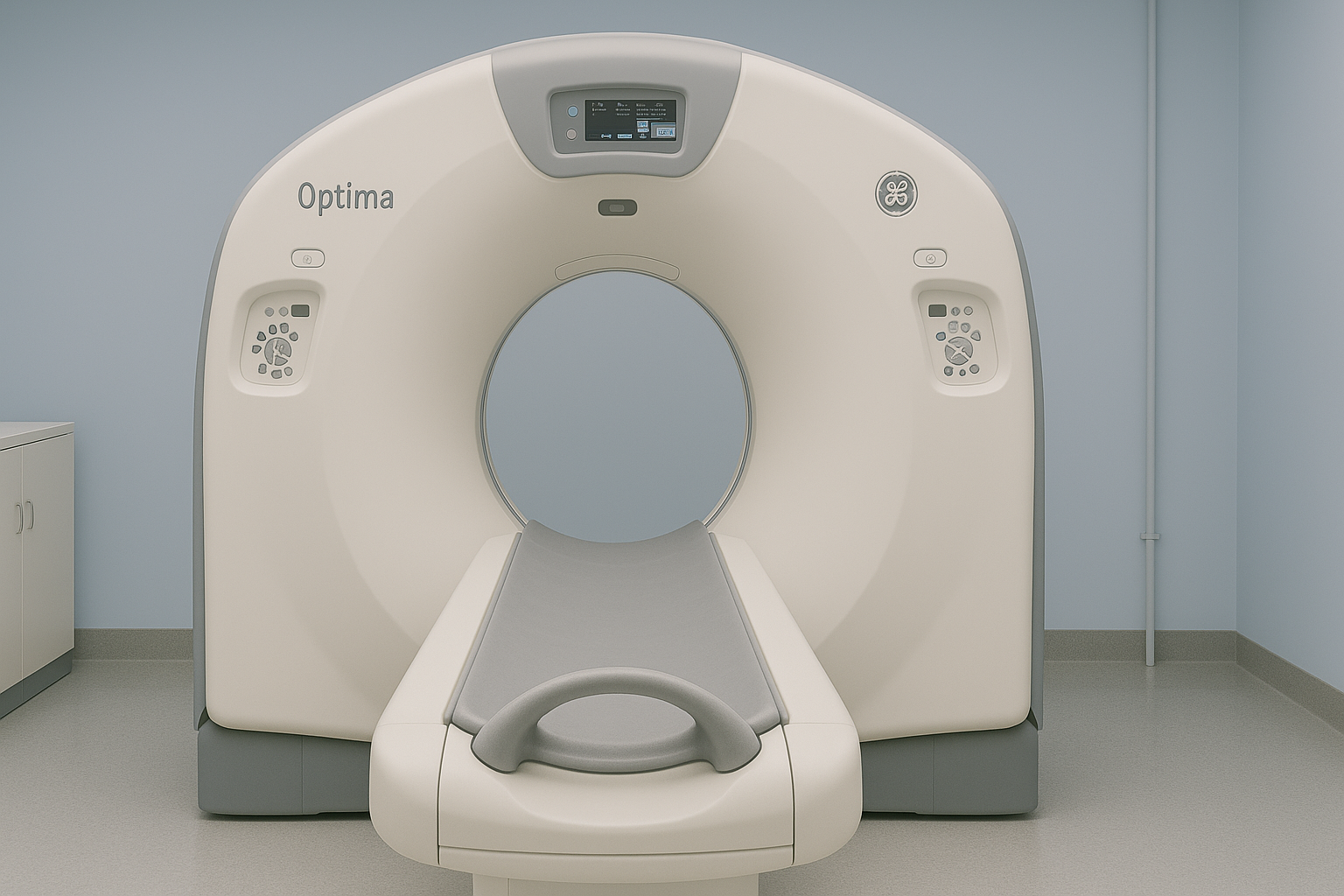

Optima 540 16/32
- 6.3 MHU anode heat capacity
- Up to 73 kW generator
- 134 cm metal free scan able range
- Supports 205 kg patients accurately
- 70 cm aperture
- +/- 30 degree tilt

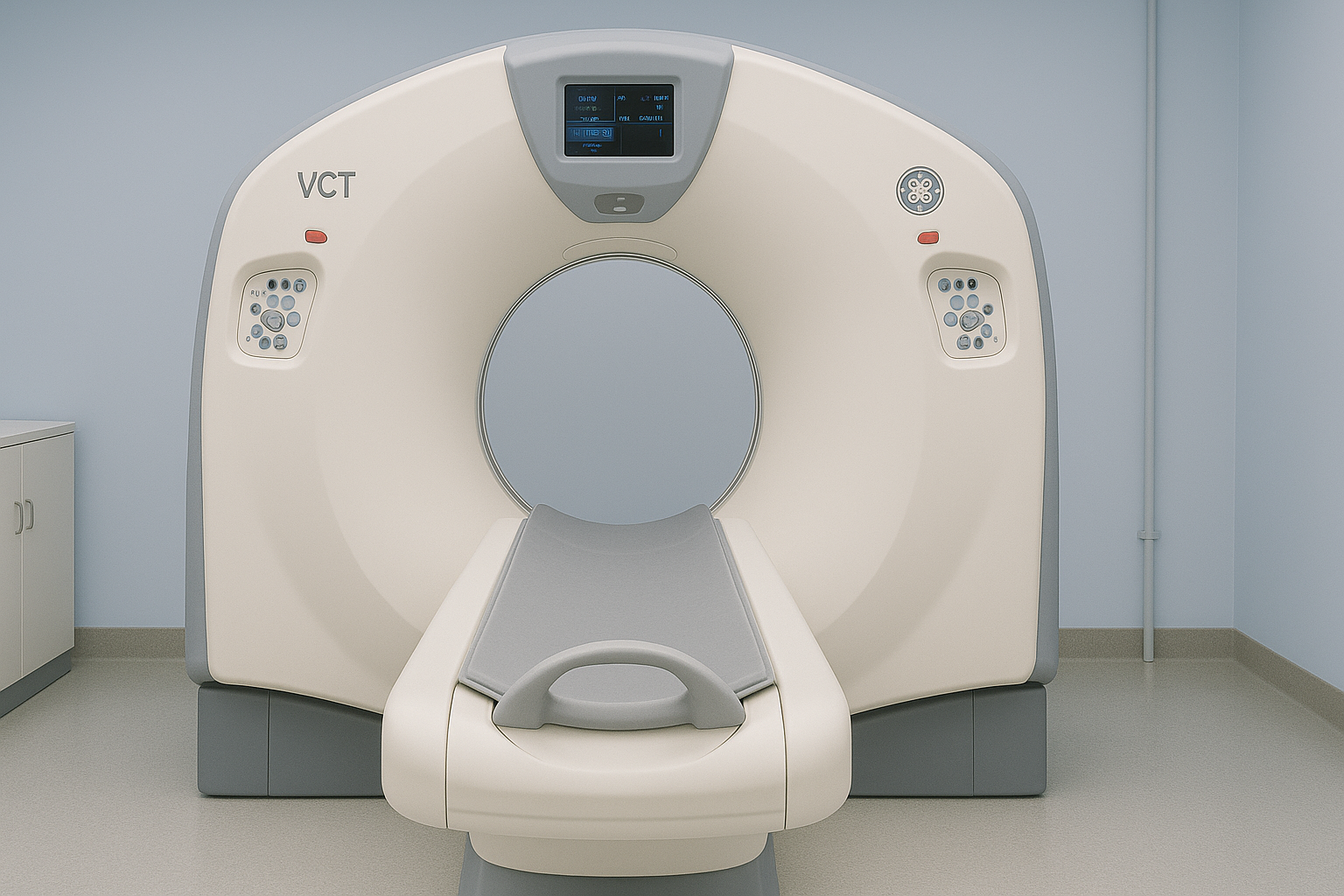

VCT 64
- Aperture: 70 cm
- 8 MHU x-ray tube
- Anode (Max): ≥ 2100 KHU/min
- Dissipation: ≥ 840 KHU/min
- Heat Dissipation: Table Load Capacity: 227 kg (500 lb) maximum allowed with ± 0.25 mm

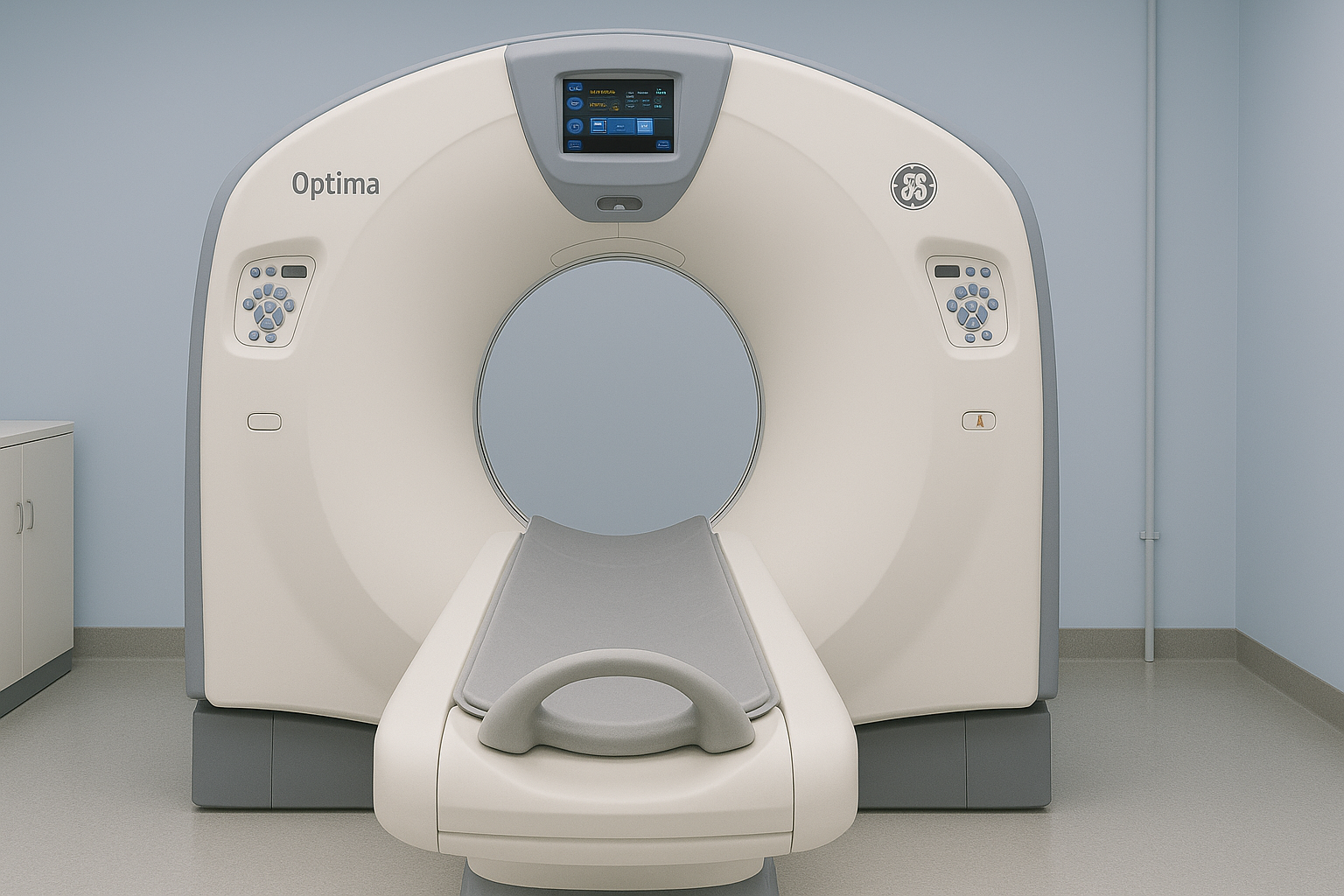

Optima 660 64/128
- 6.3 MHU anode heat capacity
- Up to 73 kW generator
- 134 cm metal free scan able range
- Supports 205 kg patients accurately
- 70 cm aperture
- +/- 30 degree tilt

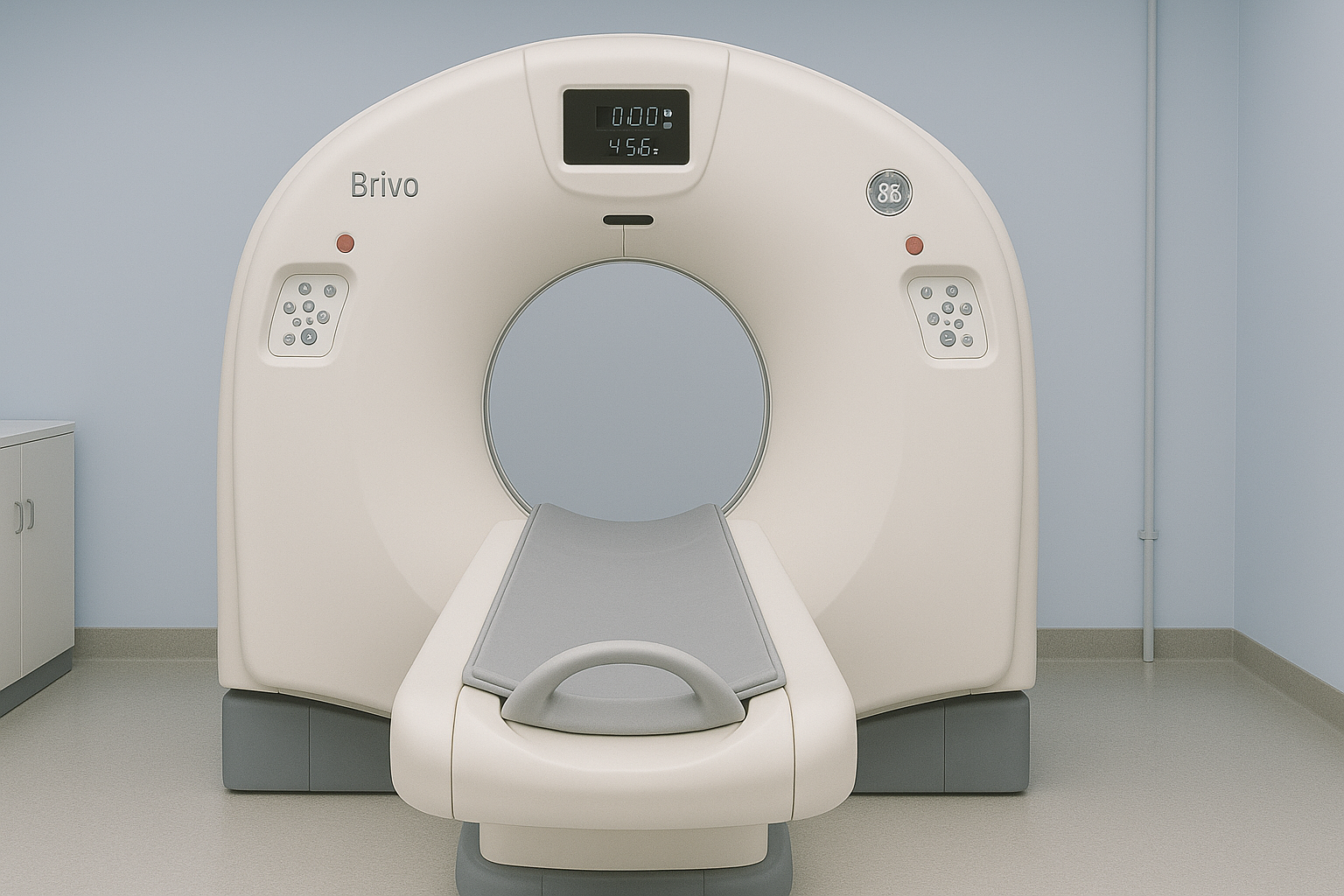

Brivo 385/325
- 2.0 MHU Anode head capacity
- 500 KHU/min Max anode dissipation rate
- On-Board 24 KW Generator
- 120 cm metal-free scan able range
- Supports 180 kg patients accurately
